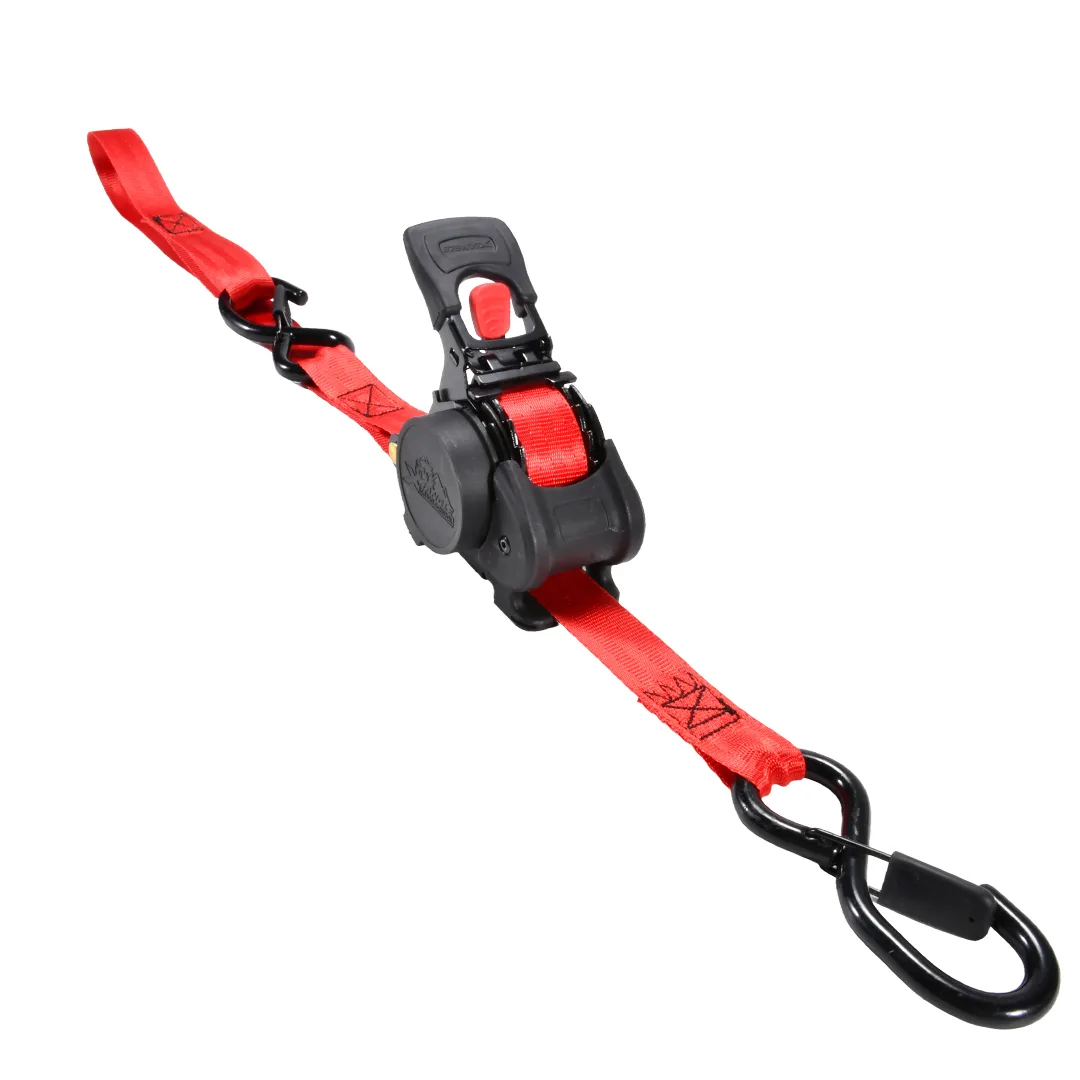

1 inch retractable ratchet tie down strap with built-in soft loop for motorcycles and ATVs

Related Blogs

1" x 10ft Retractable Tie Downs w/ Built in Soft-Tie

Product Code:PG_ARS006

A compact 1 inch retractable ratchet tie down designed for motorcycles, ATVs, and powersports transport. The built-in soft loop fixed end helps protect handlebars and frames from direct metal-hook contact, while the automatic retractable mechanism keeps excess webbing organized and easy to store. Rated at 1763 lbs breaking strength with OEM customization support for webbing color, logo, packaging, and project-specific requirements.

Need Custom Solutions?

Fill out the form below with your specifications.

Quick Specs:

  • Width: 1inch(25mm)
  • Retractable Length: MAX 9.35ft(285cm)
  • Fixed End Length: 1.38ft(42cm)
  • Breaking Strength - Assembly: 1763lbs(800kg)
  • Working Load Limit - Assembly: 586lbs(266kg)
  • Webbing Material: Polyester
  • Webbing Color: Black(Customizable)
  • Breaking Strength - Webbing: 1885lbs(855kg)
  • Working Load Limit - Webbing: 628lbs(285kg)

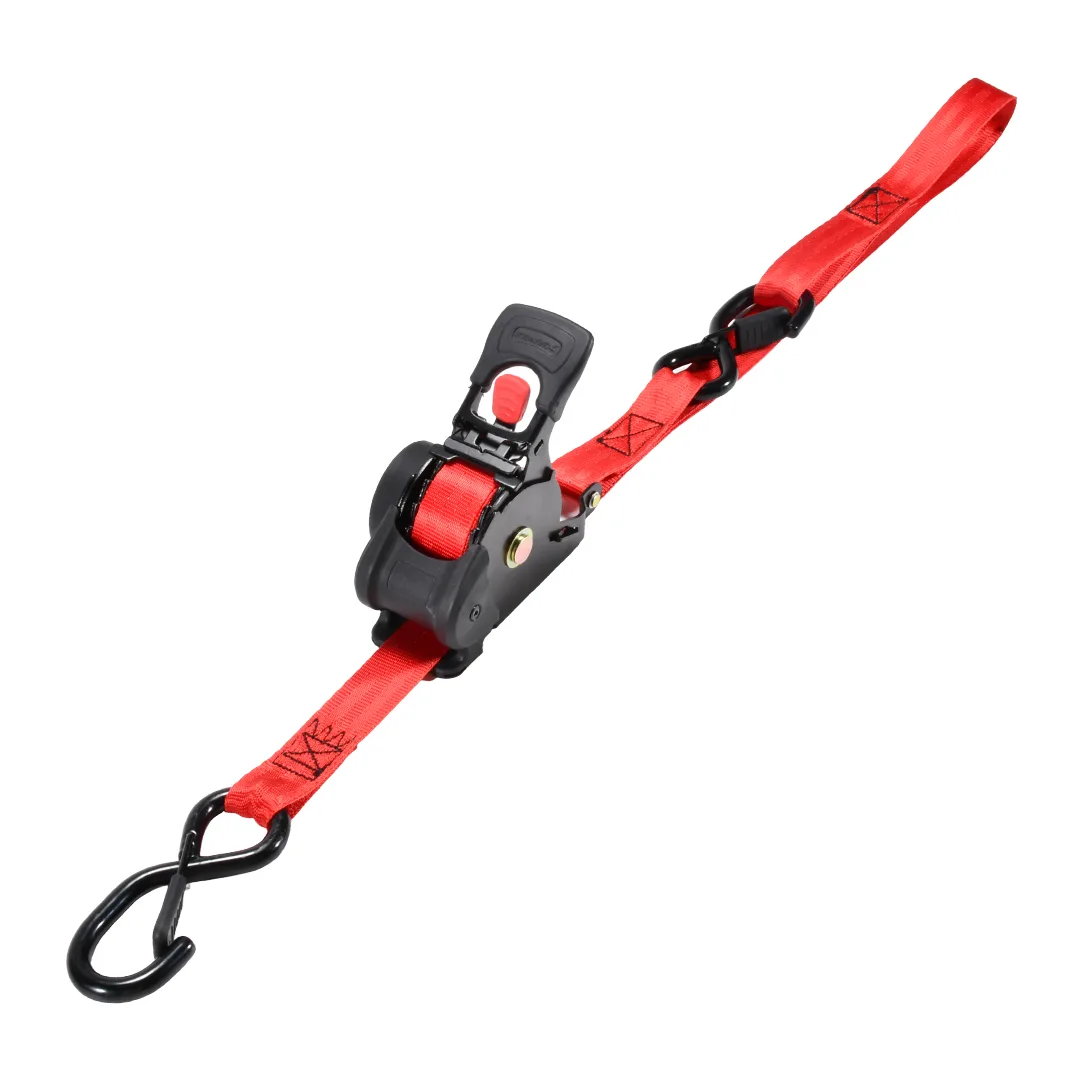

1″ x 10ft Retractable Tie Downs w/ Built in Soft-Tie

Built-in Soft Loop Fixed End

The fixed end is upgraded from a standard hook design to an integrated soft loop. This allows users to wrap the strap around motorcycle handlebars, ATV frames, roll bars, or other tie points where direct metal contact should be avoided. It helps reduce the risk of scratches while creating a secure connection point for transport.

Automatic Retractable Design

The retractable ratchet mechanism allows the user to pull out the needed strap length, tighten the load, and then retract the excess webbing after use. This keeps the strap compact, clean, and tangle-free, making it easier to store in a truck, trailer, garage, or powersports gear kit.

Secure S-Hook with Keeper

The long end uses a vinyl-coated S-hook with a keeper clip to help maintain attachment during transport. The vinyl coating provides a cleaner finish and helps reduce direct metal-to-metal contact with anchor points.

Designed for Motorcycles, ATVs & Powersports

This strap is especially suitable for securing motorcycles, dirt bikes, ATVs, quads, and other light powersports equipment on trailers, truck beds, cargo vans, and utility vehicles. The built-in soft loop makes it more application-focused than a regular retractable ratchet strap.

Reliable Strength for Light-Duty Transport

The assembly is rated at 1763 lbs breaking strength with a 586 lbs working load limit, making it suitable for controlled light-duty tie-down applications. The polyester webbing provides strong abrasion resistance and stable performance for regular transport use.

OEM & Customization Support

Available for OEM and private label programs, this retractable tie down can be customized with different webbing colors, logo options, packaging formats, and project-specific specifications. It is suitable for powersports brands, accessory distributors, trailer suppliers, and retail-ready tie-down programs.

Width:1inch(25mm)
Retractable Length:MAX 9.35ft(285cm)
Fixed End Length:1.38ft(42cm)
Breaking Strength - Assembly:1763lbs(800kg)
Working Load Limit - Assembly:586lbs(266kg)
Webbing Material:Polyester
Webbing Color:Black(Customizable)
Breaking Strength - Webbing:1885lbs(855kg)
Working Load Limit - Webbing:628lbs(285kg)
End Fitting Type:Vinyl Coated S-Hook w/ Keeper
End Fitting Material:A3 Steel
End Fitting Finish:Vinyl Coated
Ratchet Type:Automatic Ratchet
Ratchet Material:A3 Steel + 40Mn Steel
Ratchet Finish:Black E-coating
Application:motorcycles, ATVs
Compliance:DOT & WSTDA
Customization:OEM Support
Country of Origin:China
