1.5 inch 304 stainless steel endless ratchet strap

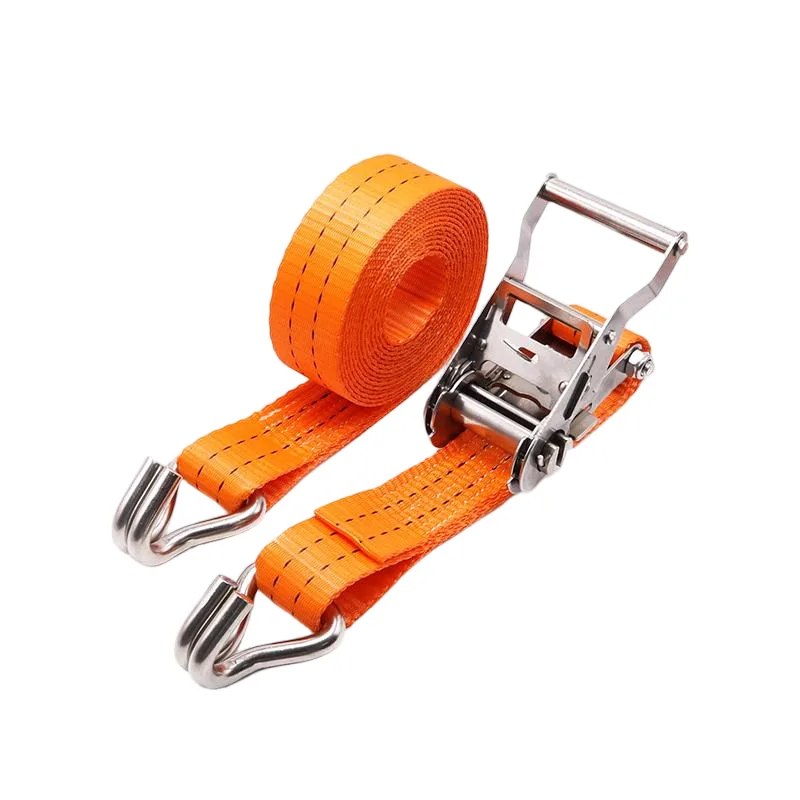

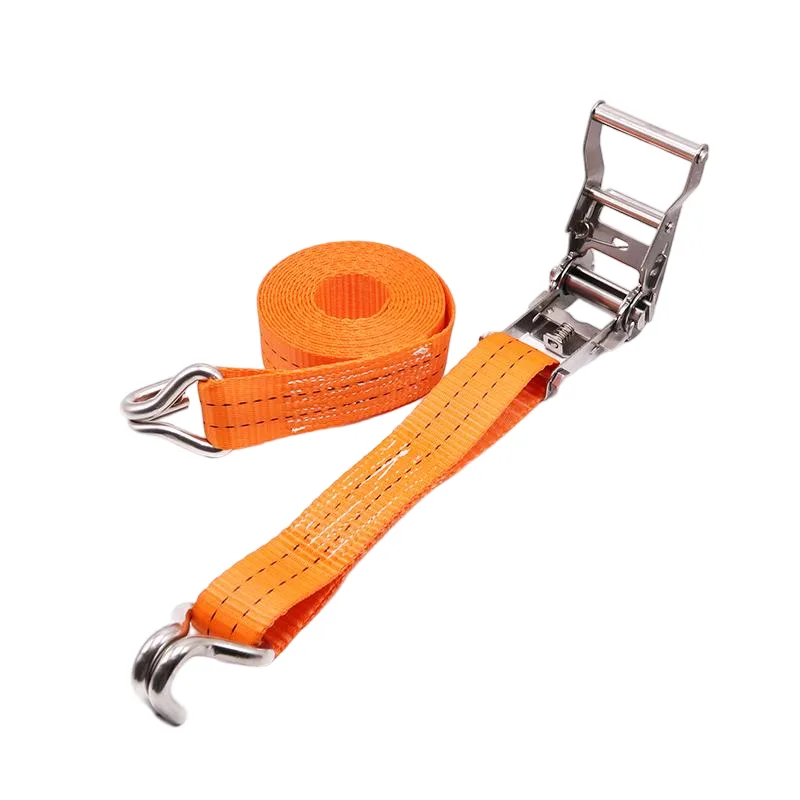

1.5-Inch 304 Stainless Steel Ratchet Strap with Double J Hooks

Product Code:TD026

Connect, tighten, and secure cargo with the 1.5-inch ratchet strap. It combines a 304 stainless steel ratchet with 304 stainless steel double J hooks at both ends and offers a breaking strength of 4,400 lbs.

Need Custom Solutions?

Fill out the form below with your specifications.

Quick Specs:

  • Width: 1.5inch(38mm)
  • Length: Customizable
  • Breaking Strength - Assembly: 4400lbs(2000kg)
  • Working Load Limit - Assembly: 1466lbs(666kg)
  • Breaking Strength - Webbing: 6380lbs(2900kg)
  • Breaking Strength - Ratchet: 4400lbs(2000kg)
  • Webbing Material: UV Resistant High-Tenacity Polyester
  • Webbing Color: Black, Orange
  • End Fitting Type: Double J Hook

1.5-Inch 304 Stainless Steel Ratchet Strap with Double J Hooks

This is designed for cargo lashing between compatible anchor points. A 304 stainless steel double J hook at each end allows the strap to connect directly to suitable tie-down fittings, while the ratchet takes up slack and tensions the webbing across the load.

With 1.5-inch webbing and a breaking strength of 4,400 lbs, this strap provides a practical option for equipment transport and general cargo restraint. The hook-ended layout is convenient for loading arrangements where dedicated anchor points are available.

304 Stainless Steel Ratchet and Double J Hooks

Both the ratchet and the double J hooks are made from 304 stainless steel, providing corrosion resistance for outdoor and waterside use. Stainless hardware is useful where moisture exposure is expected. Rinse after saltwater exposure and allow the assembly to dry before storage.

Hooks at Both Ends

The double J hooks provide a straightforward connection to compatible anchor fittings. Check that each hook seats fully and that the fitting is suitable for the hook shape and direction of pull. Keep the load on the intended bearing area of the hook and avoid loading the tip.

Position both hooks before tensioning and confirm that they remain correctly seated as the strap tightens. The strap, anchor points, and lashing arrangement must all be suitable for the cargo being secured.

Controlled Ratchet Tensioning

Pull the loose webbing through the ratchet to remove slack, then operate the handle to tension the strap in controlled increments. The adjustable webbing accommodates different load sizes within the available strap length. Close and lock the ratchet handle, secure the loose tail, and check the restraint before travel.

Features

  • 1.5-inch webbing width for a broad contact area.
  • 304 stainless steel ratchet for corrosion resistance.
  • 304 stainless steel double J hooks at both ends.
  • 4,400 lbs breaking strength.
  • Hook-ended configuration for compatible cargo anchor points.
  • Adjustable ratchet tensioning and controlled release.

Applications

  • Trailer cargo: Securing suitable equipment to compatible trailer tie-down points.
  • Watersports equipment: Restraining suitable gear using rated anchor fittings and an appropriate lashing route.
  • Outdoor equipment transport: Holding suitable tools and recreational equipment during travel.
  • General cargo lashing: Connecting loads to suitable fixed anchor points on vehicles or transport platforms.
Width:1.5inch(38mm)
Length:Customizable
Breaking Strength - Assembly:4400lbs(2000kg)
Working Load Limit - Assembly:1466lbs(666kg)
Breaking Strength - Webbing:6380lbs(2900kg)
Breaking Strength - Ratchet:4400lbs(2000kg)
Webbing Material:UV Resistant High-Tenacity Polyester
Webbing Color:Black, Orange
End Fitting Type:Double J Hook
End Fitting Material:304 Stainless Steel
Buckle Type:Ratchet Buckle
Buckle Material:304 Stainless Steel
Application:Offshore Rigs, Commercial Marine, Scaffolding Bundling
Compliance:EN12195-2 & WSTDA
Customization:OEM Support
