Heavy-duty ratchet strap with locking S-hooks and integrated soft loop

1inch Motorcycle Ratchet Tie Down Strap

Product Code:TD018

An advanced cargo tie-down device that integrates a 3,300 lbs high-leverage ratchet mechanism and safety-latch S-hooks to deliver an 1,100 lbs Working Load Limit (WLL). Engineered to significantly reduce loading time, it features a built-in soft loop that allows users to rapidly anchor motorcycles and heavy powersports equipment without scratching delicate surfaces.

Need Custom Solutions?

Fill out the form below with your specifications.

Quick Specs:

  • Width: 1inch(25mm)
  • Length: Customizable
  • Breaking Strength - Assembly: 3300lbs(1500kg)
  • Working Load Limit - Assembly: 1100lbs(500kg)
  • Breaking Strength - Webbing: 3527lbs
  • Breaking Strength - Ratchet: 3300lbs
  • Breaking Strength - Hook: 3300lbs
  • Webbing Material: High-Tenacity Polyester
  • Webbing Color: Black(Customizable)

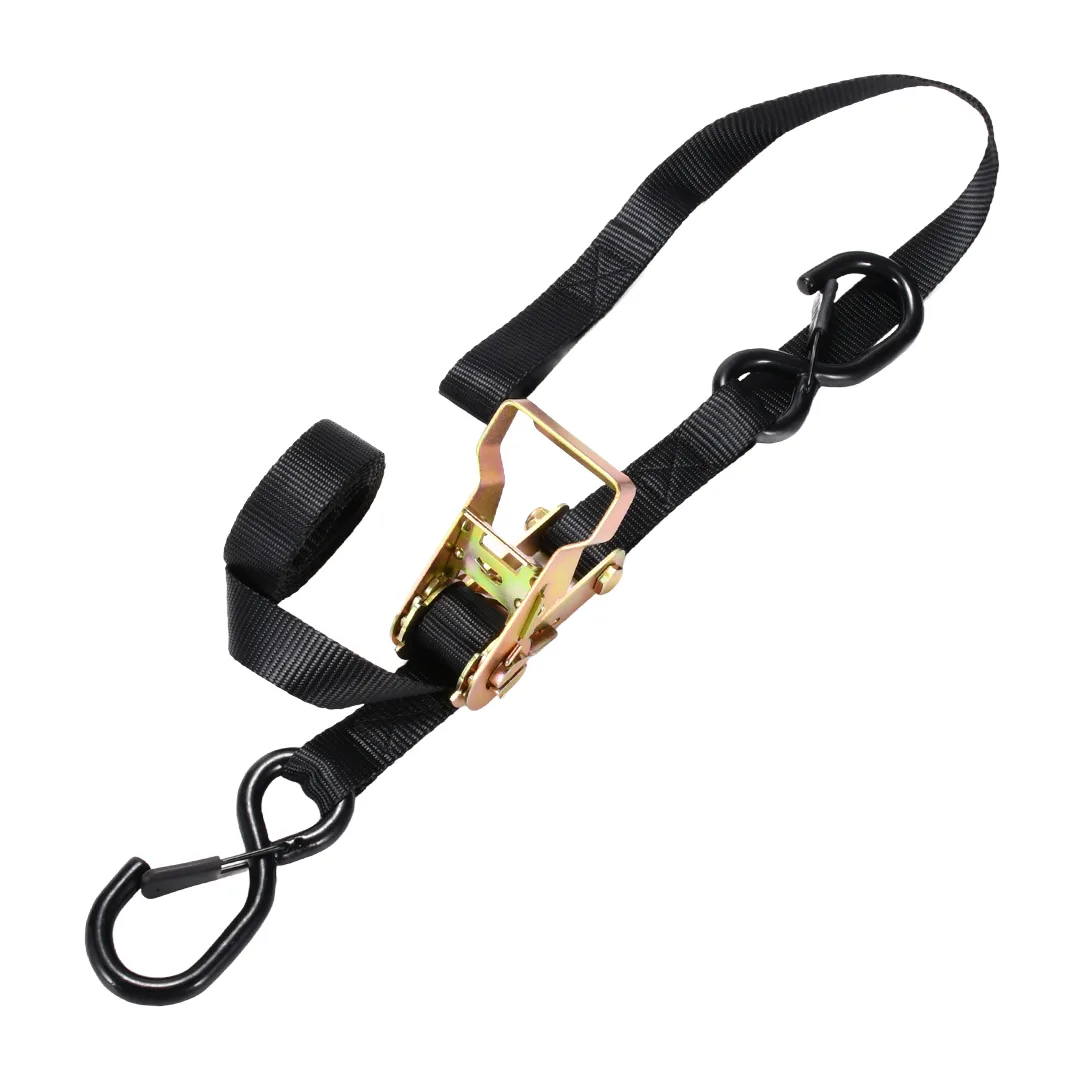

Integrated Soft Loops for Scratch-Free Anchoring

The standout feature of this cargo strap is the built-in soft loop tied directly into the fixed end. Rather than searching for separate axle straps, users can instantly choke the webbing around delicate motorcycle handlebars, ATV suspension forks, or frame rails. This guarantees zero metal-on-metal contact and protects chrome and paintwork from friction damage.

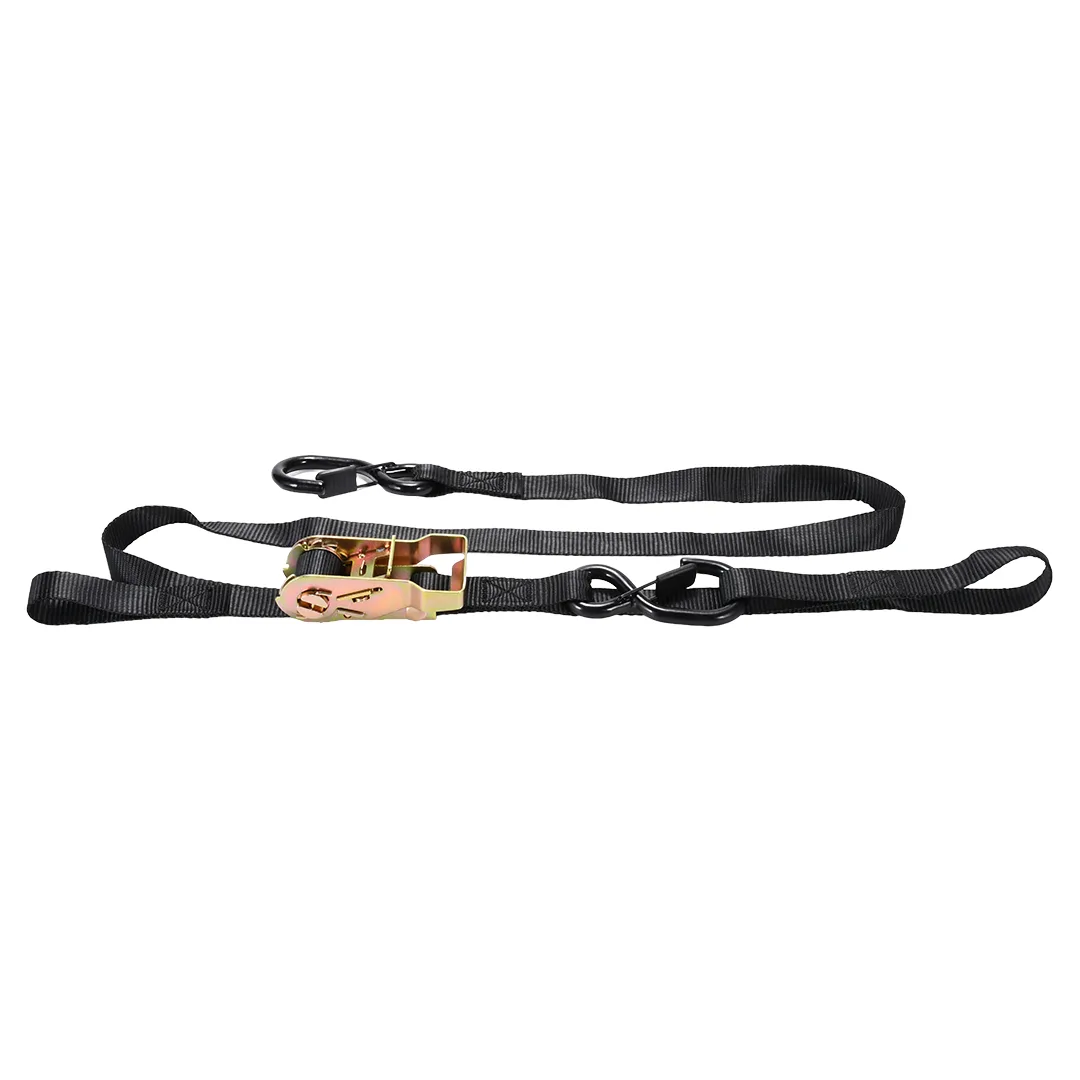

Locking S-Hooks for Fail-Safe Security

Standard open hooks are notorious for detaching when a vehicle bounces over uneven off-road terrain or when a motorcycle's suspension compresses. The integrated spring-loaded safety latches on these S-hooks create a closed-loop connection to trailer D-rings, ensuring the strap remains mechanically locked under all dynamic load shifts and vibrations.

Upgraded Assembly Strength

Unlike standard 1-inch utility straps that typically max out at 1,500 lbs, this assembly is engineered for extreme duty. The high-tenacity polyester webbing, zinc-plated ratchet buckle, and heavy-duty hooks provide a certified 3,300 lbs assembly breaking strength, offering unparalleled safety margins for heavy equipment transport.

Features

  • Innovative built-in soft loop extension significantly reduces loading and unloading time
  • Spring-loaded locking S-hooks guarantee a fail-safe, closed-loop trailer anchor point

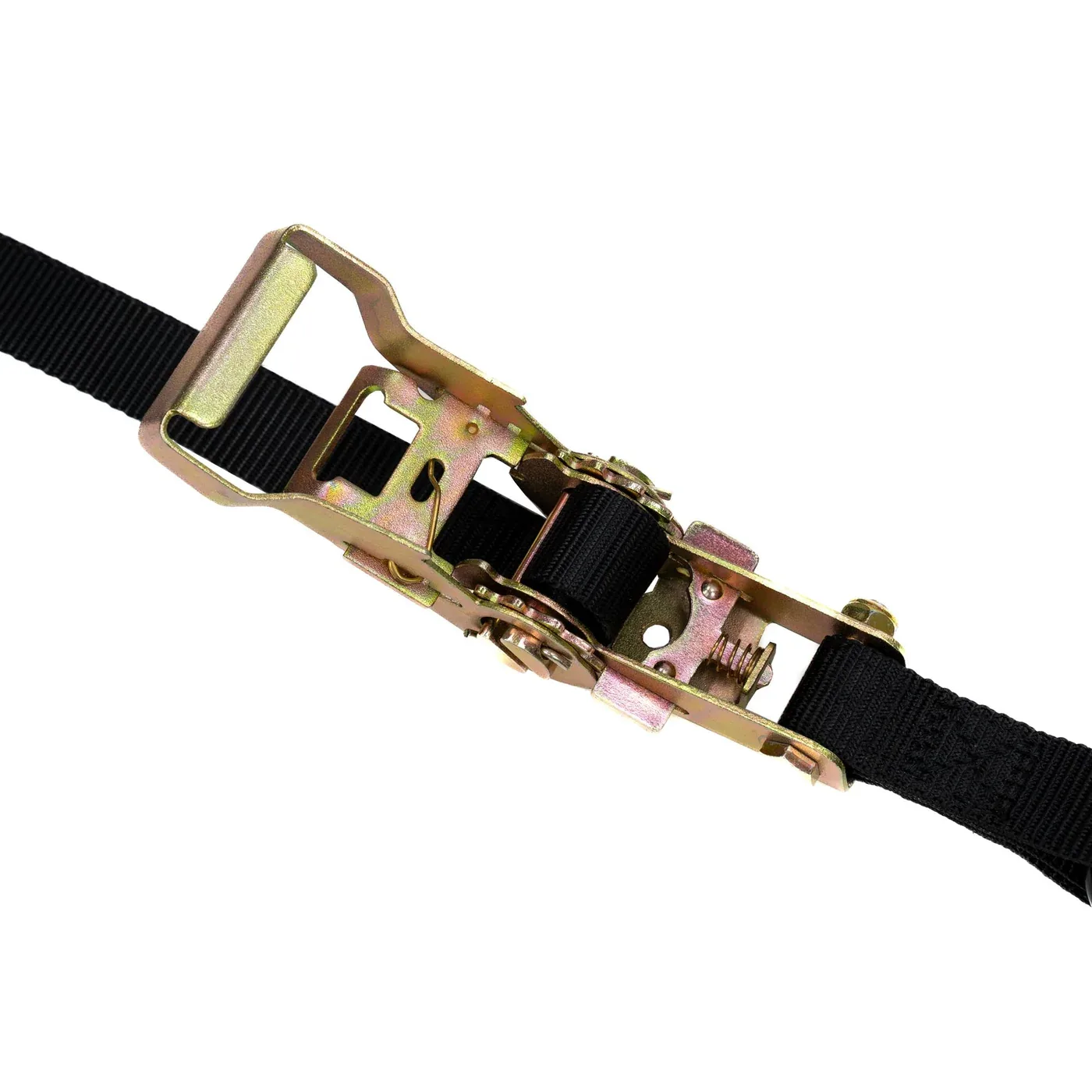

  • Heavy-duty zinc-plated ratchet buckle delivers precise, high-leverage manual tension
  • Certified 3,300 lbs assembly breaking strength and 1,100 lbs Working Load Limit (WLL)
  • High-tenacity polyester webbing rated at 3,527 lbs resists stretching and abrasion
  • Heavy-duty vinyl coating on hooks prevents friction damage to cargo surfaces
  • Full OEM support including woven logos, custom webbing colors, and retail packaging

Applications

  • Powersports Transport: Motorcycles, dirt bikes, ATVs, and side-by-sides
  • Rough Terrain Hauling: Off-road logistics requiring closed-loop anchors
  • Professional


Width:1inch(25mm)
Length:Customizable
Breaking Strength - Assembly:3300lbs(1500kg)
Working Load Limit - Assembly:1100lbs(500kg)
Breaking Strength - Webbing:3527lbs
Breaking Strength - Ratchet:3300lbs
Breaking Strength - Hook:3300lbs
Webbing Material:High-Tenacity Polyester
Webbing Color:Black(Customizable)
End Fitting Type:Locking S-Hooks & Integrated Soft Loop
End Fitting Material:Steel
End Fitting Finish:Vinyl Coated
Ratchet Type:Heavy-Duty Ratchet
Ratchet Material:Steel
Ratchet Finish:Zinc-Plated
Application:Motorcycles ATVs Heavy Cargo
Compliance:DOT & WSTDA
Customization:OEM Support
Country of Origin:China
