Ergonomic rubber grip handle on a zinc-plated 1763 lbs ratchet buckle

1inch Rubber Grip Ratchet Strap with Locking S-Hook

Product Code:TD015

Compact cargo tie-down device designed to quickly and securely stabilize light-to-medium loads. It combines an easy-to-use rubber handle with safety-latch S-hooks, delivering a 1,763 lbs breaking strength and a 587 lbs Working Load Limit (WLL) for reliable transport. This straightforward tie-down is primarily used for securing motorcycles, ATVs, and everyday cargo on utility trailers, roof racks, and pickup trucks.

Need Custom Solutions?

Fill out the form below with your specifications.

Quick Specs:

  • Width: 1inch(25mm)
  • Length: Made to Order
  • Breaking Strength - Assembly: 1763lbs(800kg)
  • Working Load Limit - Assembly: 587lbs(266kg)
  • Breaking Strength - Webbing: 2204lbs(1000kg)
  • Breaking Strength - Ratchet: 1763lbs(800kg)
  • Breaking Strength - Hook: 1763lbs(800kg)
  • Webbing Material: 100% HT Polyester
  • Webbing Color: Black(Customizable)

Why Choose a 1-Inch Locking Ratchet Strap

This 1-inch assembly offers the perfect balance of compact size and fail-safe security for everyday hauling. The rubber-coated handle ensures comfortable, slip-resistant tensioning, while the integrated safety latches on the S-hooks guarantee the strap will not disconnect from the anchor point, even if the load shifts or the road gets bumpy.

Key Features

  • Rubber Grip Handle: Provides enhanced comfort, better grip, and easier leverage during tensioning compared to bare metal handles.
  • Locking S-Hooks: Spring-loaded safety latches keep the hooks securely attached to D-rings or rails, preventing accidental drops.
  • Load Capacity: Built for everyday utility with a 1,763 lbs breaking strength and a certified 587 lbs WLL.

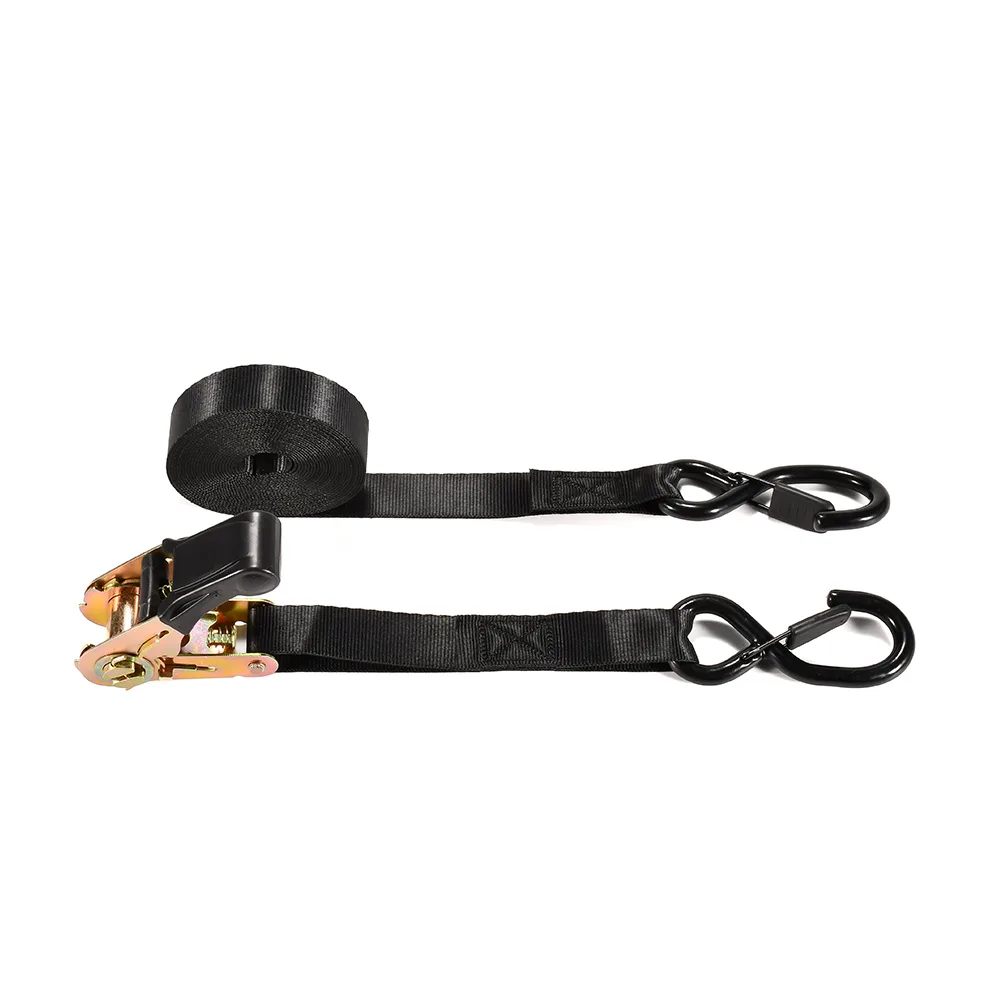

  • Durable Webbing: 1-inch black polyester webbing resists abrasion, UV rays, and weather damage.

When and Where to Deploy

  • Power Sports: Securing motorcycles, dirt bikes, and ATVs on utility trailers.
  • Pickup Truck Beds: Tying down furniture, landscaping equipment, or building materials.
  • Roof Racks: Anchoring ladders, cargo boxes, and recreational gear to vehicle roofs.

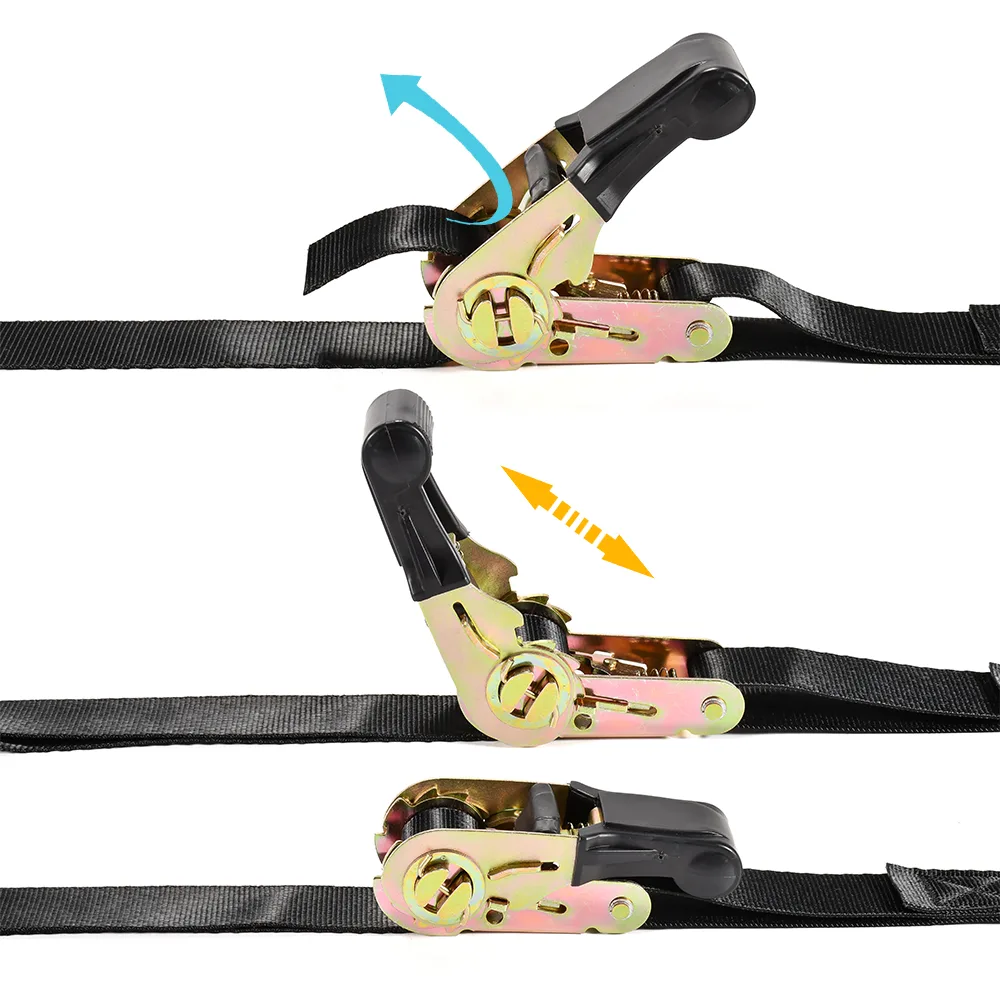

Ratchet Use Guidelines

According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."

Width:1inch(25mm)
Length:Made to Order
Breaking Strength - Assembly:1763lbs(800kg)
Working Load Limit - Assembly:587lbs(266kg)
Breaking Strength - Webbing:2204lbs(1000kg)
Breaking Strength - Ratchet:1763lbs(800kg)
Breaking Strength - Hook:1763lbs(800kg)
Webbing Material:100% HT Polyester
Webbing Color:Black(Customizable)
End Fitting Type:Locking S-Hook (with Safety Latch)
End Fitting Material:#45 Steel
End Fitting Finish:Vinyl Coated
Ratchet Type:Rubber Grip Handle Ratchet
Ratchet Material:A3 Steel
Ratchet Finish:Yello Zinc-Plated
Application:Motorcycles, ATVs, Utility Trailers
Compliance:DOT & WSTDA
Customization:OEM Support
